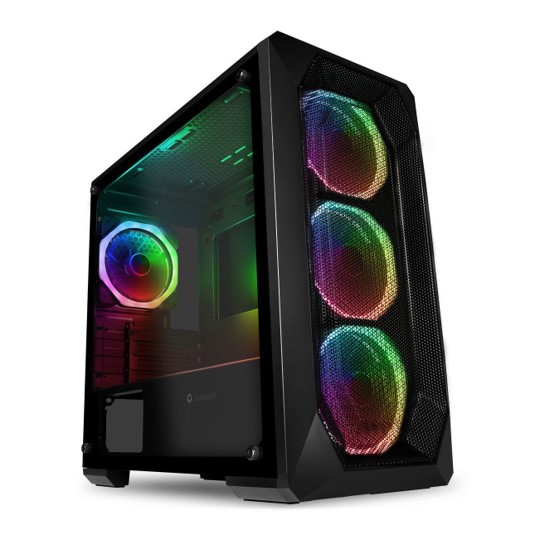

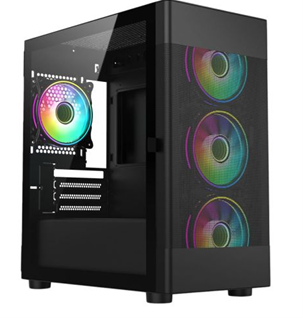

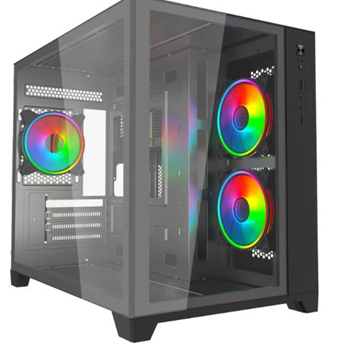

Ryzen 7600 Gaming Computer System Suitable 1080p Gaming ( Choice of case )

0

• • Unique Feature
    Superb Productivity
    – PCIe Gen5 (M.2)
    – Dual Channel DDR5
    Rock-Solid Durability
    – 8+2+1 Power Phase, 50A Dr.MOS
    – Pre-Installed I/O Shield
    Ultrafast Gaming
    – 2.5G LAN EZ Update
    – BIOS Flashback Button
    – ASRock Auto Driver Installer
    EZ Troubleshooter
    – ASRock Post Status Checker
  • CPU

    – Supports AMD Socket AM5 Ryzen™ 8000 and 7000 Series Processors*

    *The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.
  • Chipset
    – AMD B650
  • Memory
    – Dual Channel DDR5 Memory Technology
    – 2 x DDR5 DIMM Slots
    – Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*
    – Max. capacity of system memory: 96GB
    – Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

    *Please refer to Memory Support List for more information.
  • BIOS
    – 256Mb AMI UEFI Legal BIOS with GUI support
  • Graphics
    Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
    – 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
    – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
  • Audio
    – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
    – Nahimic Audio
  • LAN
    – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
    – Dragon RTL8125BG
    – Supports Dragon 2.5G LAN Software
    – Smart Auto Adjust Bandwidth Control
    – Visual User Friendly UI
    – Visual Network Usage Statistics
    – Optimized Default Setting for Game, Browser, and Streaming Modes
    – User Customized Priority Control

• Slots
  CPU:
  – 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
  – 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*
  Chipset:
  – 1 x PCIe 4.0 x1 Slot (PCIE2)*
  – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module- Supports AMD CrossFire™
  – 15μ Gold Contact in VGA PCIe Slot (PCIE1)

  *Supports NVMe SSD as boot disks
• Storage
  CPU:
  – 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
  Chipset:
  – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
  – 4 x SATA3 6.0 Gb/s Connectors

  *Supports NVMe SSD as boot disks
• RAID
  – Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  – Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*

  *Requires additional M.2 NVMe expansion cards to support RAID 10
• USB
  – 1 x USB 3.2 Gen2 Type-C (Front)
  – 1 x USB 3.2 Gen1 Type-C (Rear)
  – 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
  – 8 x USB 2.0 (4 Rear, 4 Front)

  *All USB ports support ESD Protection
• Connector
  – 1 x SPI TPM Header
  – 1 x Power LED and Speaker Header
  – 1 x CPU Fan Connector (4-pin)*
  – 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**
  – 1 x 24 pin ATX Power Connector
  – 1 x 8 pin 12V Power Connector
  – 1 x Front Panel Audio Connector
  – 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
  – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
  – 1 x Front Panel Type C USB 3.2 Gen2 Header

  *CPU_FAN1 supports the fan power up to 1A (12W).

  **CHA_FAN1~3/WP support the fan power up to 2A (24W).
  CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.

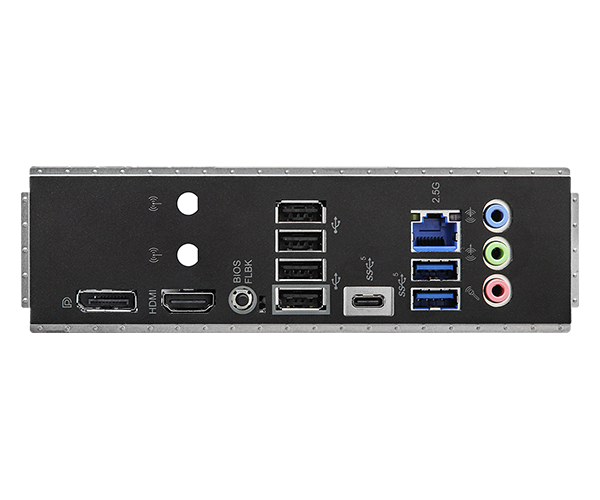

• Rear Panel I/O
  – 2 x Antenna Mounting Points
  – 1 x HDMI Port
  – 1 x DisplayPort 1.4
  – 1 x USB 3.2 Gen1 Type-C Port
  – 2 x USB 3.2 Gen1 Type-A Ports
  – 4 x USB 2.0 Ports
  – 1 x RJ-45 LAN Port
  – 1 x BIOS Flashback Button
  – HD Audio Jacks: Line in / Front Speaker / Microphone
• Software and UEFI
  Software
  – ASRock Motherboard Utility (A-Tuning)
  – ASRock Dragon 2.5G LAN Software*
  UEFI
  – ASRock Full HD UEFI
  – ASRock Auto Driver Installer
  – ASRock Instant Flash

  *These utilities can be downloaded from ASRock Live Update & APP Shop.
• Accessories
  – 1 x User Manual
  – 2 x SATA Data Cables
  – 2 x Screws for M.2 Sockets
• Form Factor
  – Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm
  – 2oz Copper PCB
• OS
  – Microsoft Windows^®  11 64-bit
